Leveling the SW1

The SW1 must be leveled for accurate results. If it’s tilted, gravity will affect the motion of the racquet.

  1. Place the SW1 where you intend to use it.
  2. Mount the calibration rod in the cradle. Include the weight or fully extend the extendable rod.
    Mount Calibration Rod
  3. Adjust the three leveling feet until the cradle stays nearly stationary when released from any position. How?
    Adjust Leveling Feet

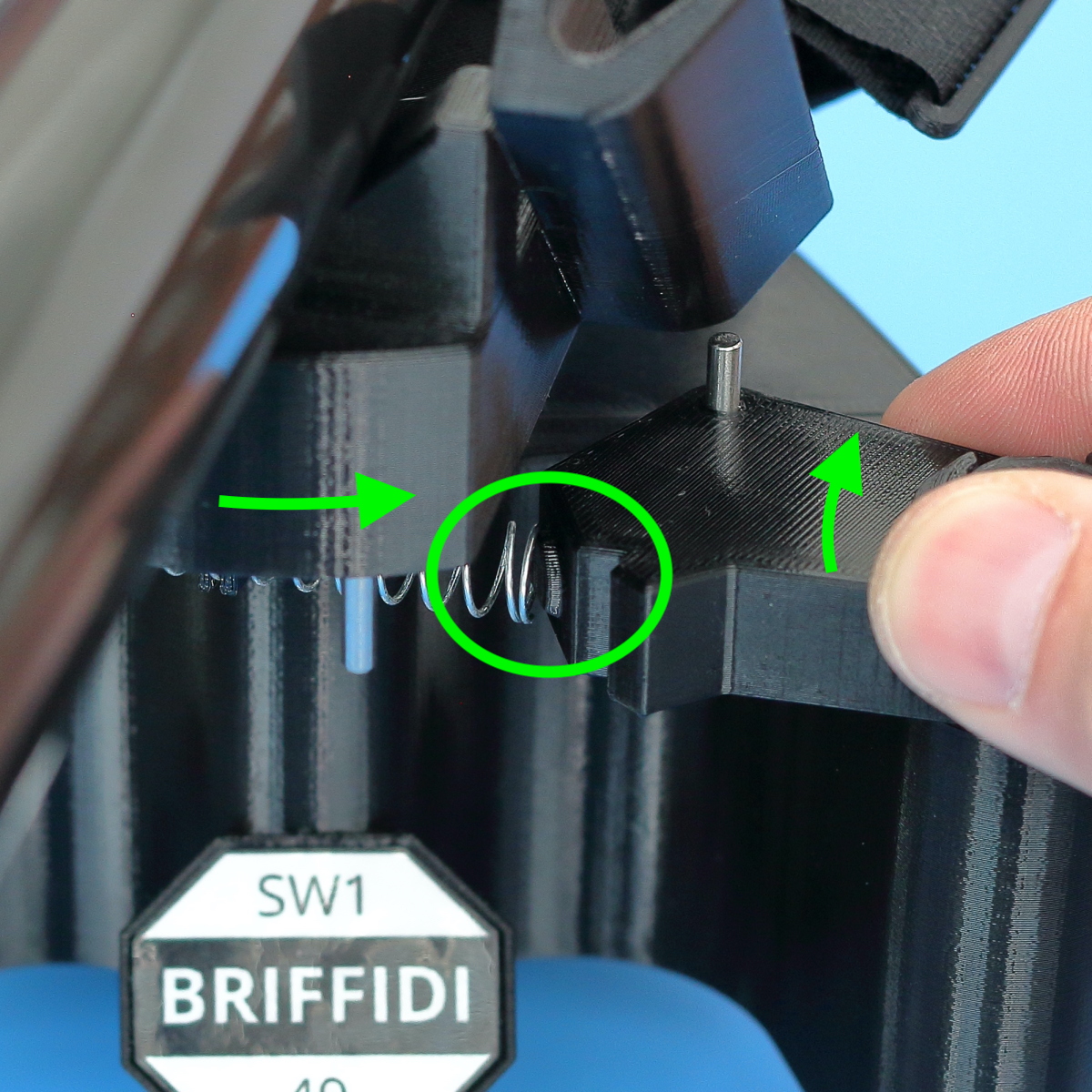

  4. Re-engage the spring with the raised feature on each spring stop.
    Re-engage Spring 1 Re-engage Spring 2
  5. Wait two minutes before measuring. Why?

Leveling is Complete

Move on to calibrating the SW1.
